Print current pageProduct Description
- brief introduction
- technical parameter
- Product size
Application
CJX1 series AC contactor is suitable for the circuitof AC 50Hz (or 60Hz) and rated working voltage upto 1000V or the circuit of rated working voltage 380Vand rated working current 475A under AC-3 utilization,it is mainly used to make and break circuits in a fardistance or frequently start and control AC motors,it also can be formed into an electromagnetic starterwith suitable thermal overload relay to protect thecircuit against possible overload.
The products are in conformity with such standardsas GB14048.4 and IEC60947-4-1.
Main Techincal Data

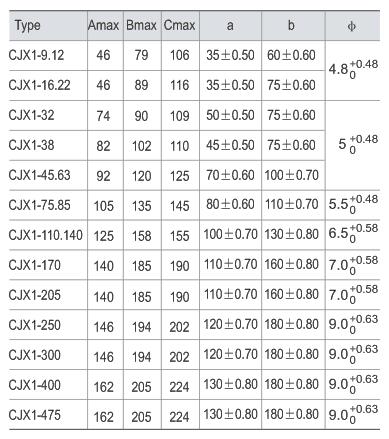

External And Installation Size
? ? ? ? ??
